SDD PTM-0205
Press Trim Module
The SDD PTM-0205 Press Trim Module is a compact finishing solution designed for professional booklet production in office and production print environments. It ensures high-quality results, ease of use and seamless integration into existing workflows.
Forget uneven edges and time-consuming manual trimming. The SDD Press Trim Finisher ensures clean, accurate cuts on all sides, even for complex applications. Thanks to its dynamic system, it automatically adapts to different booklet sizes and thicknesses without manual intervention. The module can be connected quickly and easily to various printing systems, offering maximum flexibility in production environments.
What are the main USPs of this product?
Fully automated booklet trimming and pressing without operator intervention
Highly flexible: usable inline and nearline
Automatic job switching (e.g. A3 to A4)
Compact and mobile design (easy relocation between systems)
Seamless integration via magnetic connection
High reliability with durable knives and patented technology
A Smart Investment in Quality and Growth
This solution is more than just a finishing module – it’s a step toward a fully optimized production workflow. The combination of Konica Minolta technology and SDD trimming expertise sets new standards in productivity, quality, and profitability.
Main functionalities
- Front trimming (2–25 mm adjustable)
- Booklet pressing for flat output
- Automatic format and job switching
- Dynamic thickness adjustment
- Inline and nearline operation
- Manual feeding option (optional module)
Technical highlights
- Fully automated finishing workflow
- Dynamic job adaptation without operator input
- Easy installation via magnetic connection
- Support for multiple booklet formats
- Reliable performance with low maintenance
Specifications
- Productivity: up to 600 booklets/hour
- Paper weight: 60–300 g/m²
- Booklet thickness: up to 25 sheets
- Trim range: 2–25 mm
- Power consumption: < 0.4 kW
- Noise level: ≤ 70 dB
Finishing
- Front trimming
- Booklet pressing
- Stacking (via optional conveyor CBS-6060 or CBS-6061)
Technologies
- Patented trimming technology
- Durable knife system
Related (optional) Products
- HIM-5030 Hand Infeed Module
- CBS-6061 Conveyor Belt Stacker (60 cm)
- CBS-6151 Conveyor Belt Stacker (150 cm)
Most valuable features & benefits
The PTM-0205 offers a highly automated finishing process that reduces manual work and increases productivity. Its ability to adjust automatically to different booklet formats and thicknesses makes it ideal for environments with frequent job changes. The compact design and easy installation ensure seamless integration into existing workflows.
Automated booklet trimming and pressing for consistent, professional output
Dynamic system with automatic adaptation to format and thickness
Fast and simple installation with magnetic connection
Flexible use inline or nearline across different printing systems
High durability and reliability thanks to patented technology
Compact footprint with scalable output options

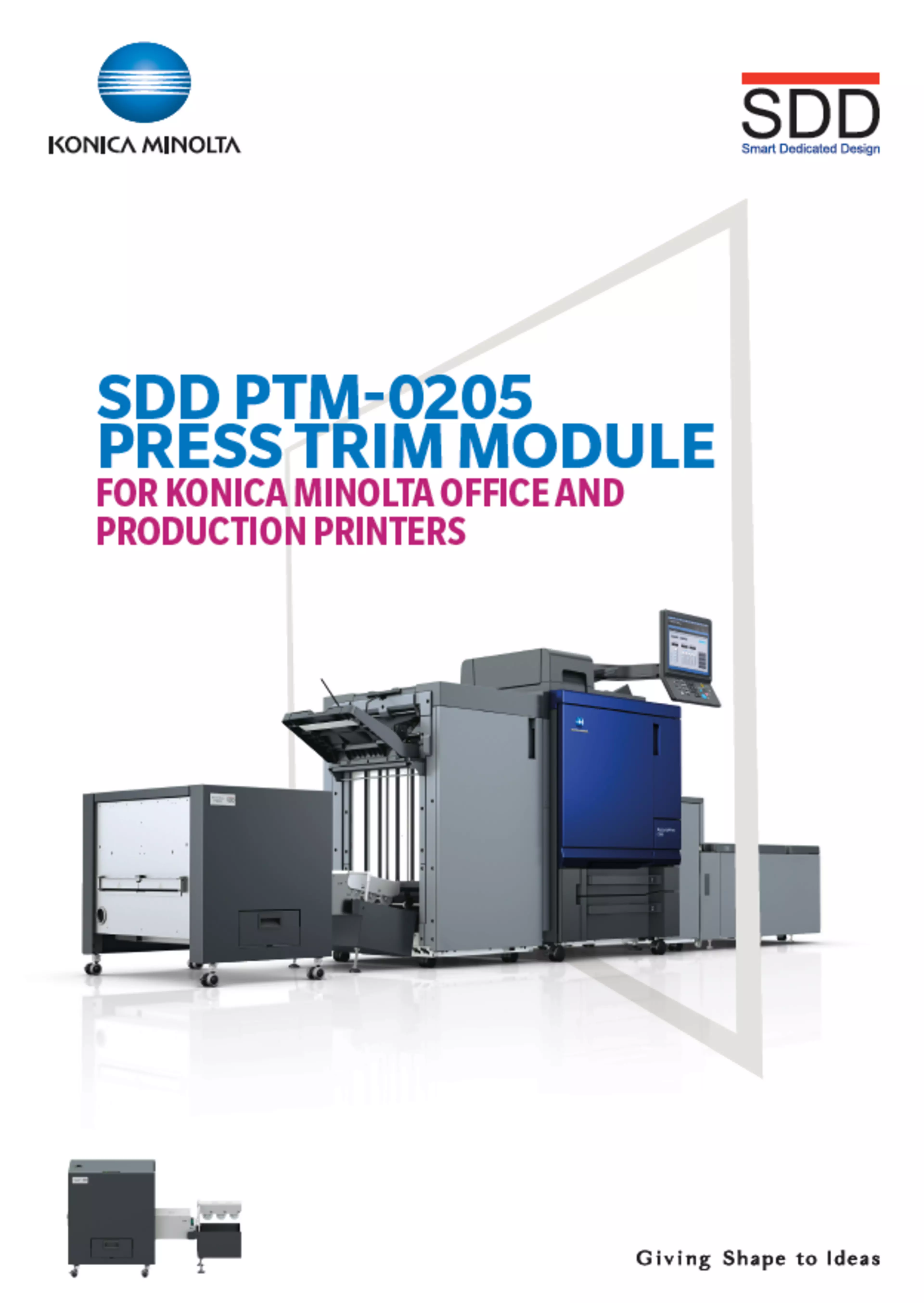

SDD PTM-0205 Press Trim Module brochure
This finisher can be connected to office systems as well as production printing systems. Its high quality enables fast, reliable output with consistent finishing quality. Easy connection to the printing system allows the finisher to be moved from one system to another in just a few minutes.
Ready to boost productivity and finishing quality? Download the brochure to discover the key features and benefits of the SDD PTM-0205.
Don’t Just Compare - Experience It
The difference isn’t just measurable - t’s immediately visible.
The SDD Press Trim Finisher is the ideal solution for businesses looking to increase productivity while elevating the quality of their finished products.
👉 Experience the system live and see for yourself how effortless perfect print finishing can be.
