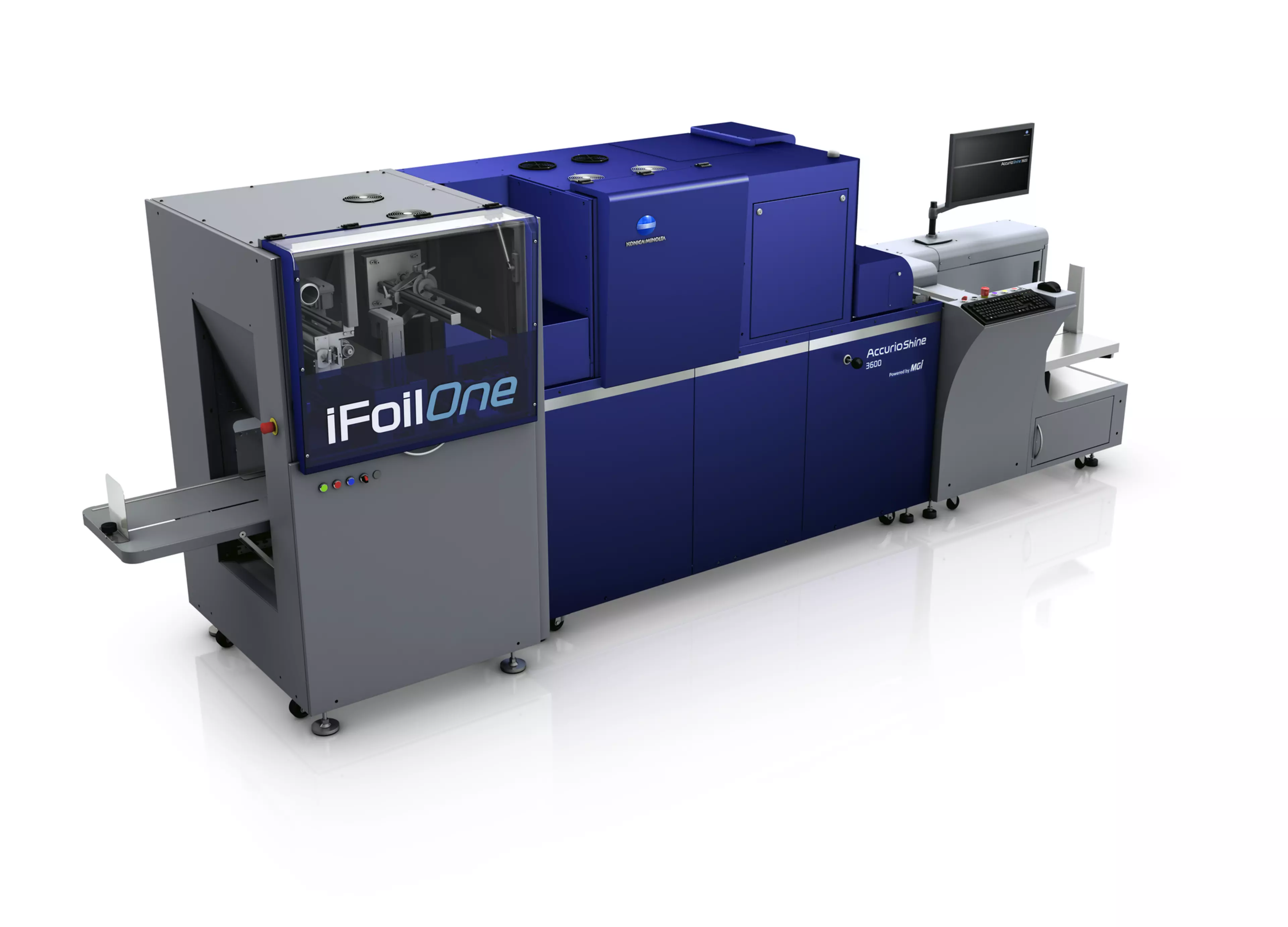

AccurioShine 3600

AccurioShine 3600

  • DIGITAL high-end embellishment device with a speed up to 2.077 A3 sheets per hour for shorter lead times and a simple job set-up
  • KONICA MINOLTA INKJET TECHNOLOGY with exclusive Konica Minolta’s drop-on-demand piezoelectric print heads for high quality
  • VARIABLE VARNISH THICKNESS between 21 and 116 micron for 2D and 3D-tactile effects in one single pass
  • EASE OF USE – no screens, no plates and no cleaning between the jobs. All that is needed is a digital mask to add varnish of varying thicknesses straight on top of toner or offset prints. That allows to take on more lucrative short and medium print runs, prepare print runs faster, eliminate plates, screens and dies and to produce more complex jobs on a wide range of substrates, toner and offset prints.
  • COMPACT SIZE, INFINITE POSSIBILITIES - In-house, full-production and prototype-finishing spot UV varnishing without the need for screens, plates or dies.
  • GENTLE ON THE ENVIRONMENT - The AccurioShine 3600 features a closed circuit system, leaves no ink or varnish residue and is designed to prevent any cleaning or material waste between jobs, helping you to reduce paper, varnish and electrical consumption
Get in Touch
Share:

Features

Key features

Our key features of the AccurioShine 3600
FeaturesImage

ARTIFICIAL INTELLIGENCE SMARTSCANNER®

  • Full page scanner
  • No crop marks required
  • Coating registration from sheet-to-sheet
  • On-the-fly skew, shift, contraction and stretch adjustment
  • Optional lighting for metalized substrates

CORONA TREATMENT SYSTEM

  • Optional in-line system enables a broader variety of media to be used
  • Improves varnish adhesion and maximizes embellishment quality on digital prints
  • Optional ozone filter cabinet

ECO-FRIENDLY IN-LINE LED DRYER for an ozone-free environment

  • On-the-fly drying and curing with integrated LEDs
  • No additional drying time required
  • Ozone-free and without heat thanks to LED technology
  • Low power consumption

HIGH PRODUCTIVITY with single pass printing

  • Up to 2,077 A3 sheets per hour with varnish thickness of 21 µm (2D/flat mode)
  • 1,260 A3 sheets per hour with varnish thickness of 51 µm (3D mode)
  • Up to 547 A3 sheets per hour with varnish thickness of 116 µm (3D mode)

POWERFUL SOFTWARE SUITE

  • On-the-fly job manager
  • Workstation image editor
  • Catalogue of different patterns
  • Job cost calculator that estimates production costs before quoting jobs
  • Intuitive operation
  • Eliminates customer prepress issues
  • Saves time and money

UNIVERSAL VARNISH

  • For 2D & 3D gloss effects
  • No need to change varnish or clean between jobs
  • Varnish comes in a 10-litre tank

VARNISH DIGITAL AND OFFSET PRINTS

  • Varnishing on toner without lamination
  • Varnishing on offset prints
  • Accurate sheet-to-sheet registration with Artificial Intelligence SmartScanner® technology
  • Quick and easy setup supports digital printing business model

Further links to AccurioShine 3600

AccurioShine 3600 datasheet
Download our datasheet
Read our AccurioShine 3600 brochure

In the printing industry, speed and cost are the two most important factors for the success of a business. Now, thanks to the AccurioShine 3600, you have a new ingenious tool to meet the demanding needs of today’s printing requirements and take care of the business end of your company. As a standalone solution, the AccurioShine 3600 adds 2D and 3D gloss effects at a reasonable cost and without the complicated steps of conventional systems. Fully digital, featuring industryleading automatic scanning technology and an eco-friendly LED dryer, all at an impressively compact size, the AccurioShine 3600 allows you to offer your customers a full range of high-impact finishing effects, while raising profit margins as well.
