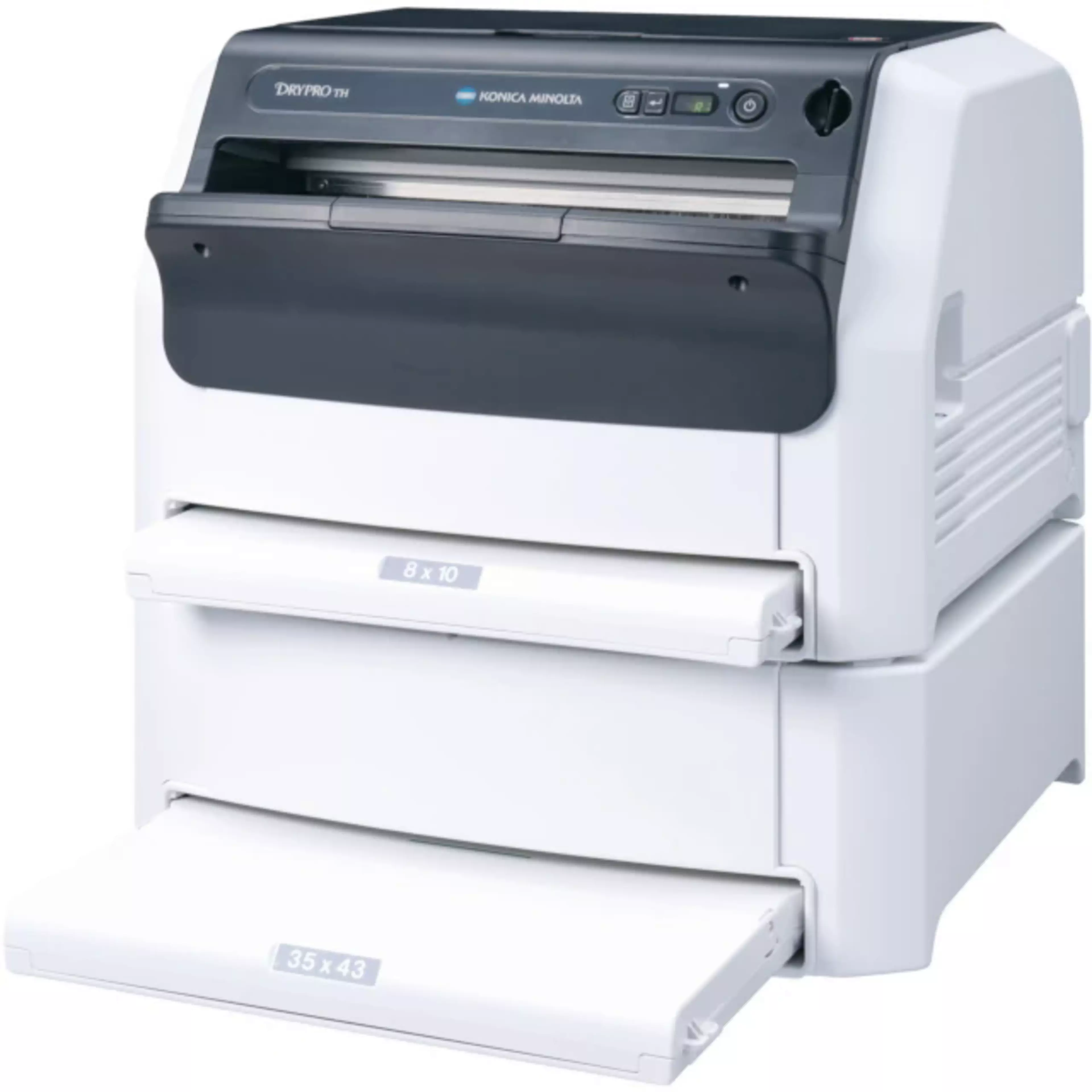

DryPro TH 2 Tray

Thermal imager

Compact / lightweight and does not require a large installation space.
Receives and prints certified image sources, such as medical diagnostic equipment ( modalities) and workstations, via the DICOM network. It is possible to send print jobs from multiple image sources simultaneously.
Output from CS-7 / ImagePilot and DICOM modalities.

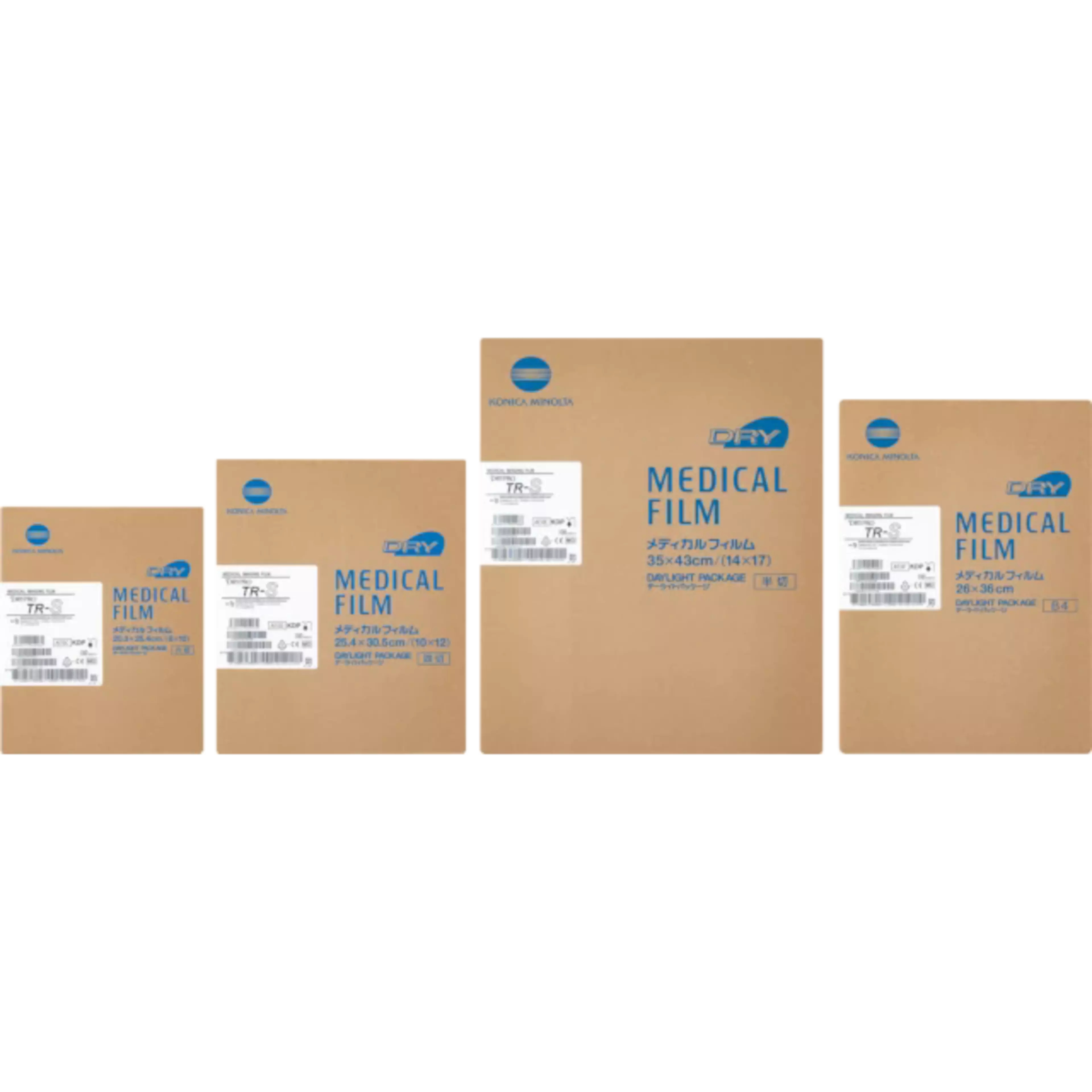

Medical film TR-S: 8×10 inch (20.3×25.4 cm), 10×12 inch (25.4×30.5 cm), 14×17 inch (35×43 cm), B4 (26×36 cm). Up to 100 sheets.

Share:

Thermal imager

Compact

Economically friendly

Supports pixel size of 87.5 micron

Fast throughput

Specifications
Printing method	Thermal head printing

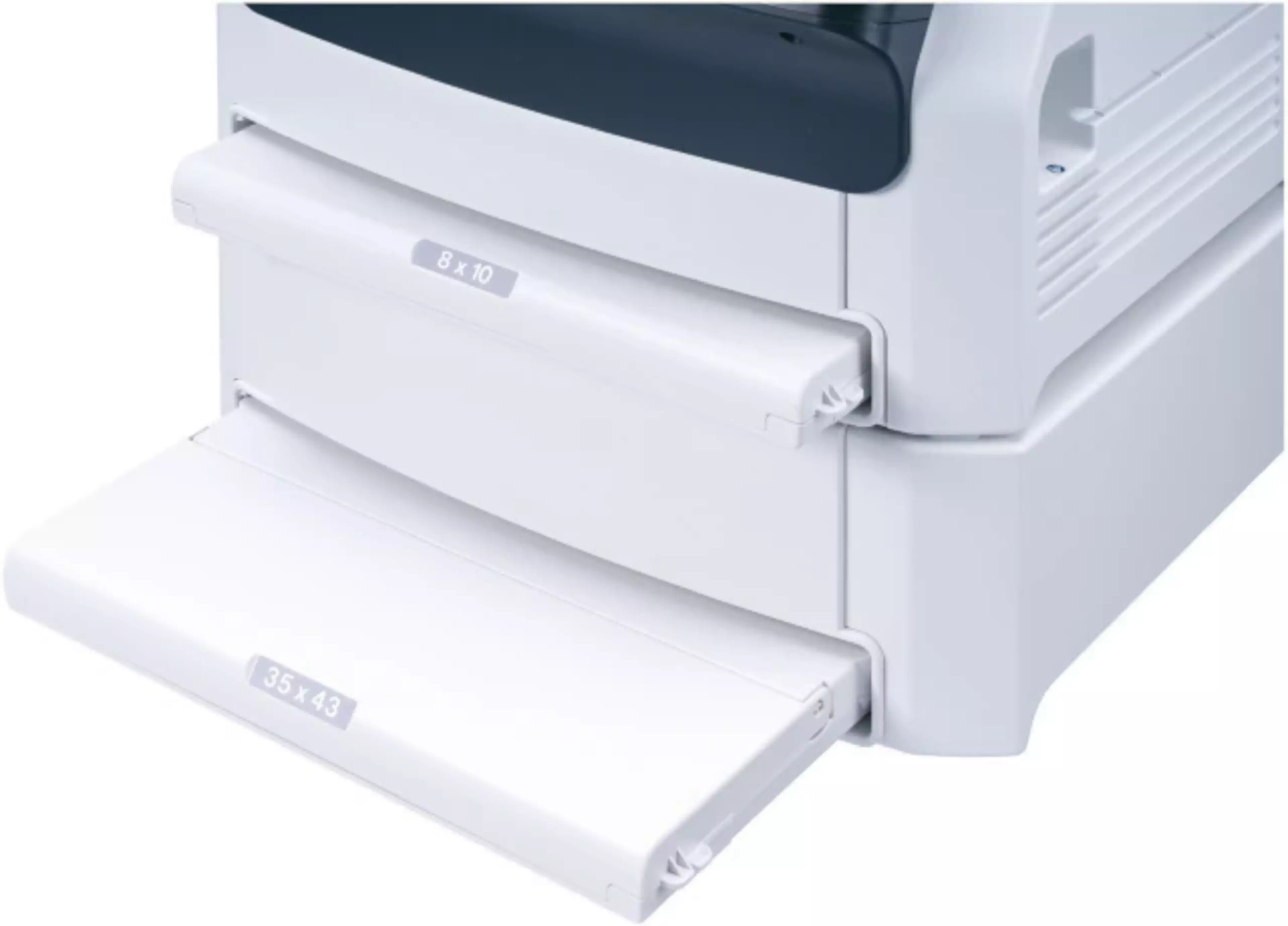

Number of tray	2
Applicable film	Konica Minolta Medical Dry Imaging film TR-S
Film size	14×17 inch (35×43 cm), B4 (26×36 cm), 10×12 inch(25.4×30.5 cm), 8×10 inch(20.3×25.4 cm)
Film packing unit	100 sheets
Preventing contamination with other companies' films	With RFID / Without RFID
Performance (max.)	14×17inch: Approx. 50 sheets/hour
Initial Printing time	14×17 inch: Approx. 105 sec.
Printed pixel size	84.7 µm (300 dpi)
Printing bit depth (gradations)	12 bits (4094 levels)
Format	1, 2, 3, 4, 6, 8, 9, 12, 15, 16, 18, 20, 24, 25, 28, 30, 32, 35, 36, 40, 42, 48, 49, 54, 56, 60, 64, 70

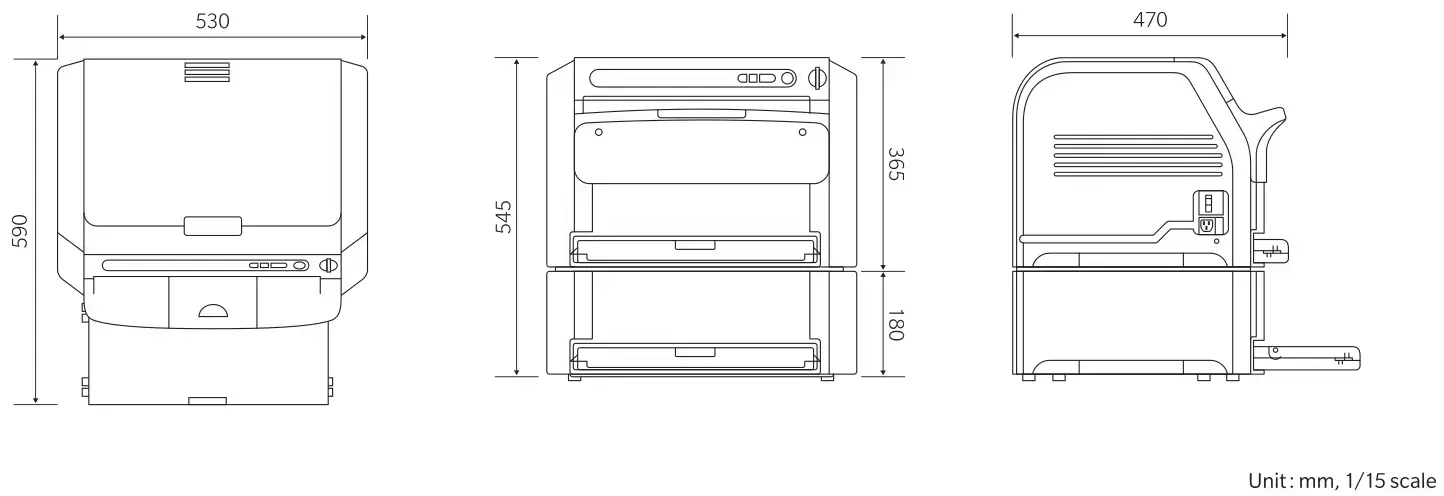

External dimensions (W×D×H)mm	2 trays 530×470x545
Weight	2 trays approximately 43 kg
Ambient operating conditions	40% to 70% (at 15°C), 15% to 70% (at 30°C) (no condensation)
Power supply rating	AC 100-240V 5-2A 50-60Hz

OPTIONS
DP TH MAGA2lNE L	L magazine (for compatible 14×17 inch size)
DP TH MAGAZINES	S magazine (for compatible B4, 10×12 inch, 8×10 inch size)
