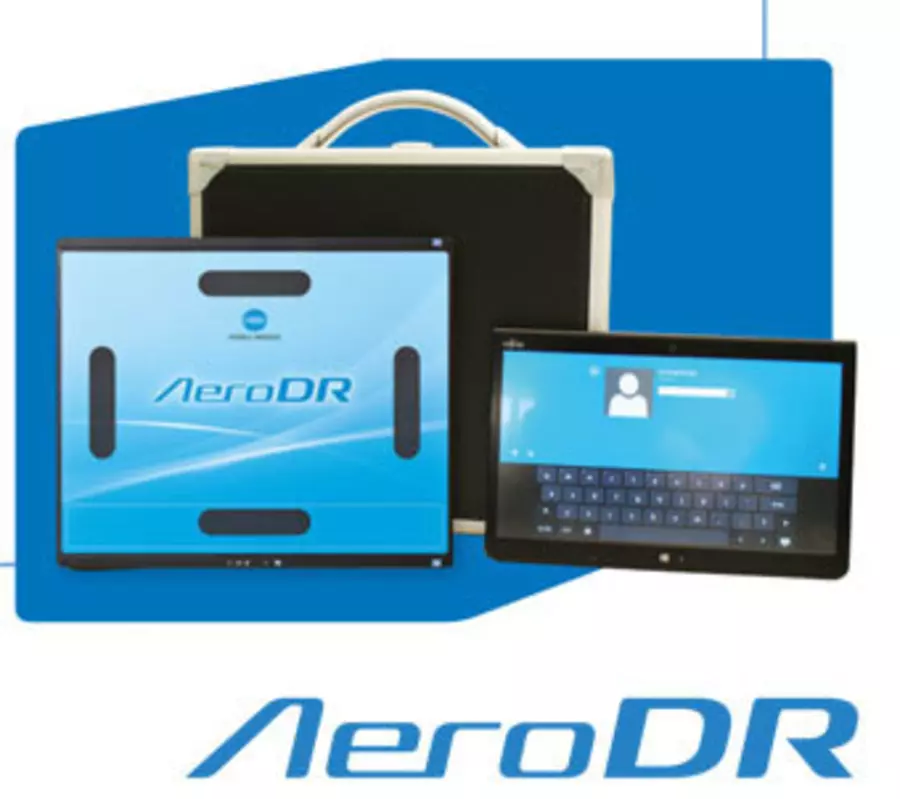

AeroDR Portable

Portable Digital X-Ray system

  • Easy and quick diagnosis whenever and wherever needed
  • Complete digital X-ray solution
  • Tablet based portable detector solution
  • Easy to carry
  • 10”x12” size only
  • Two device solution with AeroLink



AeroDR Portable Functionalities

  • To be used for point of care exams

  • Freedom of movement

  • Portable

  • Smart

  • Tablet-based image acquisition

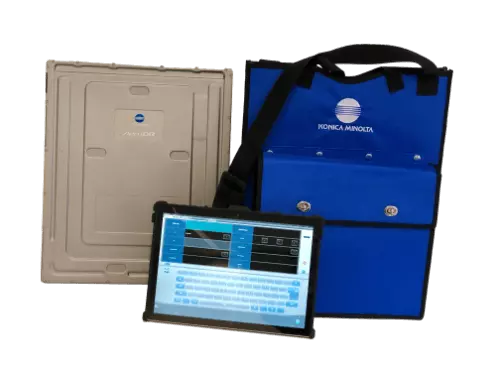

  • Lightweight bag with detachable components



AeroDR Portable Key Features

Konica Minolta has developed a portable digital X-ray solution that allows radiography professionals to do an easy and quick diagnosis wherever and whenever needed. Within 2 seconds, X-ray image previews are available making use of high end digital flat panel detectors. Since the images are immediately available, you can do a quick assessment or reshoot the image right after, making the acquisition an efficient process. This complete digital X-ray solution including tablet PC is now available in a compact portable bag to easily bring it to the point-of-care.

  • hc_feature_AED_icon


    The hybrid detection technology inside the detector has contributed to an even more reliable Automatic Exposure Detection (AED) with AeroSync.

  • hc_feature_battery_icon


    With a charging time of only 30 minutes, the AeroDR HD is completely charged from empty to full.

  • hc_feature_feather_icon


    Konica Minolta’s AeroDR HD is one of the world’s lightest 14x17 inch Flat Panel Detectors (2.6kg).

  • Icon Chest X-ray

    100 μm Resolution

    Display micro structures

    • Better visibility of trabecular bone

    • Edge of the bone is more clear

    • No “pixel shape” when zooming in

    • Higher DQE and Lower Radiation doses

  • hc_feature_weight_icon


    The AeroDR was already known for having a high surface load (400 kg), making it suitable to be used with all types and sizes of patients.

  • Fast throughout


    Its improved cycle time of 6 seconds in Wireless mode, allows you to do more exams per day and enables you to achieve a quicker diagnosis.

  • hc_feature_waterproof_icon


    The AeroDR HD is waterproof (IPX6)

  • hc_feature_wireless_icon

    100% Wireless

    The portable kit is completely wireless both for data transmission as well as power supply.

Specifications & Downloads

Specifications & Downloads
AeroDR 1417 HD
Product type AeroDR HD 14 x 17”
Detection method Indirect conversion method
Automatic Exposure Detection (AED) AeroSync
Scintillator (fluorescent substance) CsI (Cesium Iodide)
External dimensions 384 x 460 x15 mm (W x D x H)
Weight 2.6 kg
Pixel size 100 μm
Image area size 348.8 x 425.6 mm (3488 x 4256 pixels)
A/D conversion 16 bit (65.536 gradients)
Maximum patient weight Point load: 180 kg @ Ø40 mm, Face load: 400 kg @ effective image area
Waterproof Yes: IPX6
Dynamic range 4 digits
Preview display time < 2 seconds
Exposure interval (cycle time) Approx. 6 seconds (wireless connection)
Battery type Lithium-ion capacitor (built-in)
Battery charging time empty to full Within 30 minutes
Number of exposable images when the battery is fully charged 300 images / 8.2 hours (three exposures per examination in a fi ve-minute cycle examination;
when exposing with an X-ray generator
Standby time Approx. 20 hours
Surface book 2
Dimensions 312 mm x 232 mm x 13mm-23mm
Display Screen: 13.5” PixelSense™ Display
Memory 8GB RAM 1866Mhz LPDDR3
Processor 7th Gen Intel® Core™ i5-7300U dual-core processor, 3.5GHz Max Turbo
Storage Solid state drive (SSD): 256 GB
Wireless Wi-Fi: IEEE 802.11 a/b/g/n/ac compatible
Bluetooth Wireless 4.1 technology
Battery life Battery life surface book (tablet mode) 5 hours
Battery life surface book (book mode) 17 hours

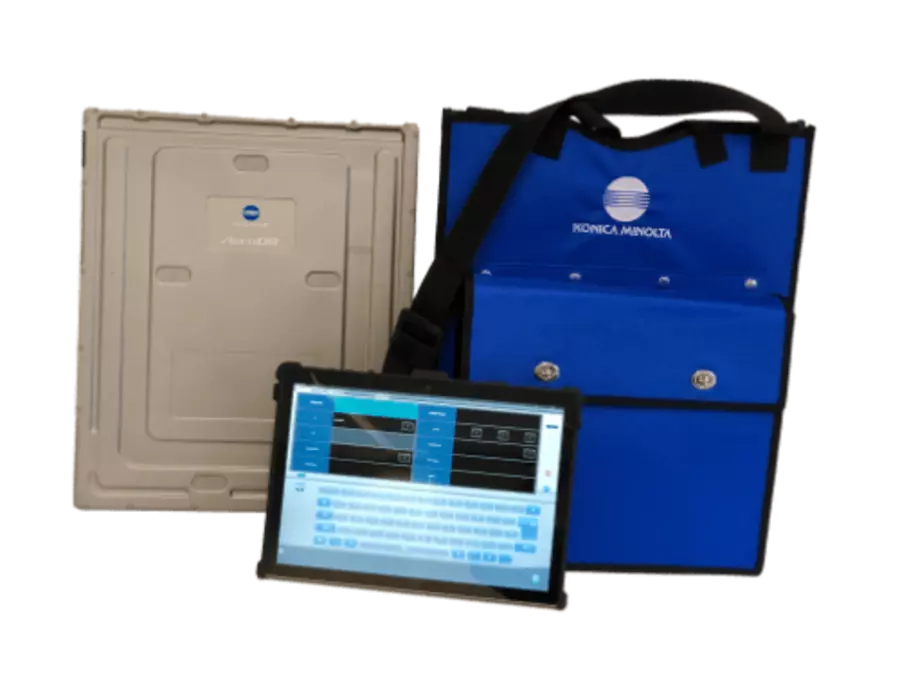

Portable bag   Weight Dimensions (lxhxw)
Model 99HC2166-2018
Dimensions Panel and laptop compartment (excl. parts) 1000 gram 405 x 480 x 70
  Panel and laptop compartment (incl. parts) 5550 gram
  Complete bag 1700 gram 405 x 480 x 165
  Complete bag including equipment 7550 gram

Also available in 10 x 12 inch size with alternative specifications
